遊園地の改札機サプライヤー: 適切な入口システムの選び方
2026-07-16
Choosing an amusement park turnstile supplier is not simply a matter of comparing gate prices, stainless-steel grades, or product dimensions. A park entrance is a working system where ticket validation, 来場者の流れ, アクセシビリティ, 安全, weather protection, and daily maintenance must operate together.
The most suitable supplier should first understand how the park receives visitors. Peak arrival times, family groups, モバイルチケット, RFIDリストバンド, annual passes, ベビーカー, 車椅子, invalid tickets, and network interruptions all affect the final entrance design.
This guide explains how amusement parks, テーマパーク, water parks, 景観名所, 積分者, and project contractors can evaluate a supplier and prepare a more accurate request for quotation.
Why Supplier Selection Is an Entrance-System Decision
A turnstile is only one part of the entrance. A complete solution may also include QR or barcode readers, RFID devices, access controllers, チケット作成ソフトウェア, network equipment, operator workstations, accessible lanes, および緊急制御.
A well-finished gate can still create queues if validation is slow or rejected tickets block the lane. Reliable software also cannot solve problems caused by unsuitable passage width, poor sensor positioning, or limited access for families.
Buyers should assess the complete operating chain:
Visitor credential → Reader → Ticket validation → Gate controller → Passage → Entry record
Review the available turnstile gate options together with the entrance drawing and ticketing requirements. The goal is not to purchase isolated hardware, but to build an entrance that performs under real operating conditions.
Plan Around Peak Visitor Flow
Daily attendance alone does not determine the required number of lanes. Capacity should be based on the busiest arrival period, acceptable queue time, actual ticket-processing speed, visitor behavior, and the percentage of guests requiring wide passage.
Ask the supplier to evaluate:
- Visitors arriving during the busiest 15, 30, または 60 議事録
- Opening-time surges and special-event traffic
- Families, groups, annual-pass holders, and staff
- Mobile QR tickets, printed tickets, RFIDカード, or wristbands
- Invalid, duplicate, 期限切れ, or unreadable credentials
- Strollers, 車椅子, バッグ, and children
- Staff assistance and exception handling
Do not rely only on a claim such as “30 persons per minute.” Actual throughput depends on scan distance, network response, gate-opening time, visitor familiarity, and failed validations. A responsible supplier should explain the test conditions behind any throughput figure and allow spare capacity for unexpected surges.

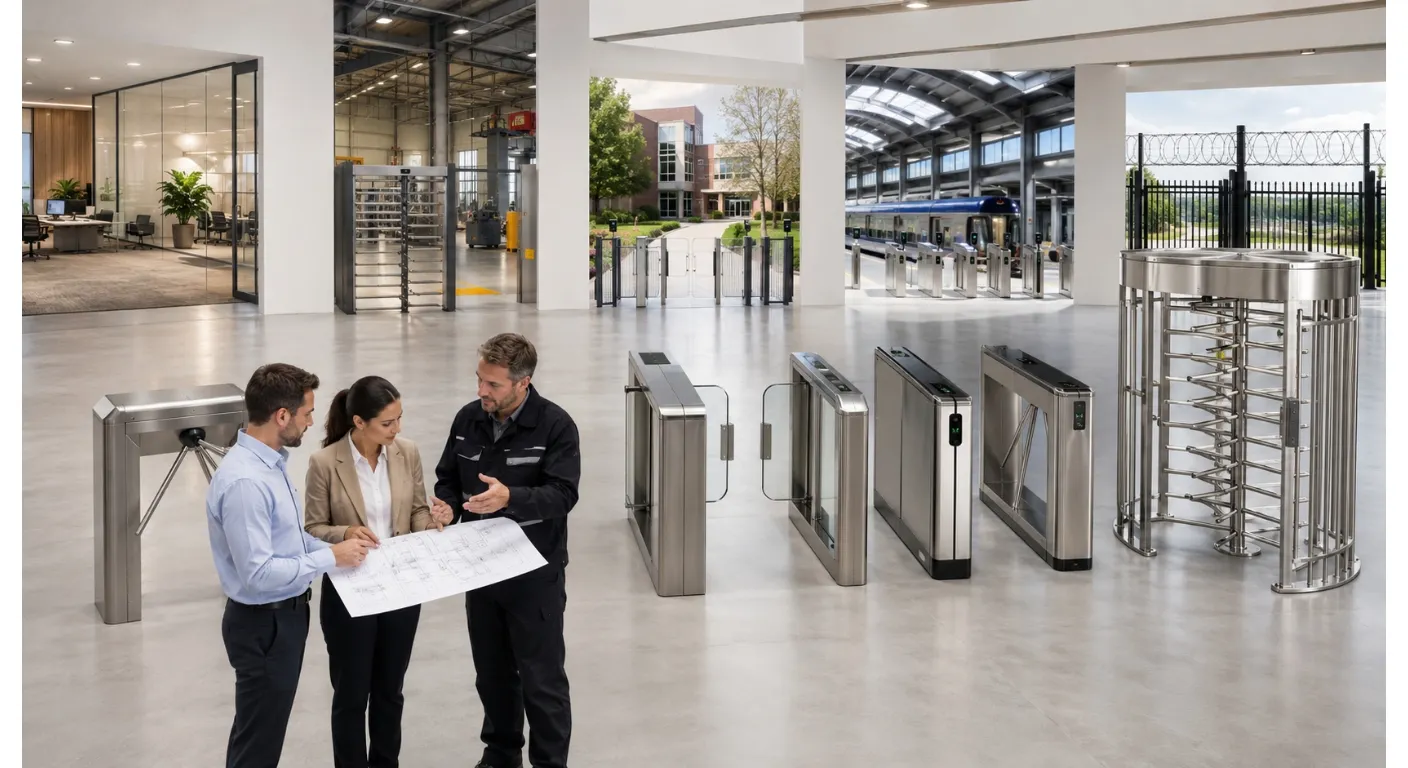

Select Turnstiles by Entrance Zone
A large park may require several turnstile types because the main entrance, employee entrance, VIP area, service gate, and perimeter zone have different priorities.
| 改札機タイプ | Suitable Area | Main Advantage | Key Point to Verify |
|---|---|---|---|
| Swing barrier gate | Main entrance and accessible lane | Wide, visitor-friendly passage | Lane width and closing safety |
| スピードゲート | Covered premium entrance | Modern appearance and controlled flow | テールゲート検知 |
| 三脚改札機 | Secondary or employee entrance | Compact and economical | Bags, 子供, and emergency release |
| 全高改札機 | Service or perimeter area | Strong physical control | Egress and public-use suitability |
A スイングバリアゲート may suit families and wide lanes. A tripod turnstile can support compact entrances, while a full-height turnstile is generally better for restricted access.
The best design is often a combination of products rather than one model used across the entire park.
Prove Ticketing Integration Before Ordering
“Compatible with ticketing systems” is not a complete technical answer. The supplier should define how the reader, コントローラ, ticketing platform, and gate exchange signals and who is responsible for each part.
Confirm:
- Credential types and reader models
- リレー, TCP/IP, RS-485, API, or SDK requirements
- Duplicate, 期限切れ, refunded, or used-ticket handling
- Offline validation during network interruption
- Data synchronization after recovery
- Operator alerts and manual release permissions
- Entry records and visitor-counting requirements
Buyers can review relevant アクセス制御機器, but final compatibility must be verified using the actual project configuration.
A factory test should use real or simulated QR tickets, RFID credentials, invalid tickets, duplicate tickets, and network-loss scenarios. This is more valuable than a general promise that the gate can connect to “any system.”
Design for Families and Accessible Passage
Amusement park visitors do not move like office employees. Parents may scan several tickets, guide children through the lane, carry bags, or push strollers. Groups may arrive together, while elderly visitors may need more time.
The entrance should provide visible readers, clear direction indicators, sufficient space around each lane, an attendant station, an exception area, and a wide passage for wheelchairs and strollers.
For U.S. プロジェクト, レビュー アメリカ合衆国. Access Board guidance for entrances, ドアーズ, そして門. A standard turnstile should not be treated as the accessible route, so the complete layout may require an adjacent compliant gate or door.
Accessibility should be included in the original entrance plan, not added after the main lanes are fixed.
Evaluate Outdoor Durability by Component
Many park turnstiles are installed outdoors, under partial canopies, or near water attractions. The supplier should evaluate each component instead of applying a general “waterproof” label to the whole system.
小切手:
- Stainless-steel grade and surface finish
- Controller-compartment sealing
- Reader, display, and indicator protection
- Cable glands and connector locations
- Internal drainage and floor anchoring
- 動作温度
- 湿度, 塵, 雨, sunlight, and salt exposure
の IEC explanation of IP ratings helps buyers understand enclosure protection against solids and water. Ask which exact component was tested, which IP level applies, and whether customization affects the result.
For coastal parks and water parks, 耐食性, 排水, and service access may be as important as the cabinet material itself.
Verify Safety, 緊急, and Failure Behavior
A park entrance must remain manageable when power, 通信, or normal visitor behavior changes. Confirm:
- Gate position during power failure
- Behavior during network interruption
- Manual release method
- Emergency input and alarm connection
- Obstacle and anti-pinch detection
- Response when a visitor stops inside the lane
- Recovery after power or network restoration
Emergency requirements vary by location and building layout. The park operator, supplier, ticketing provider, integrator, architect, and local authority should review the final control logic together.
A component certificate or standard function does not automatically prove that the complete entrance meets every local requirement.
Compare Suppliers by Evidence and Testing
| Supplier Claim | Evidence to Request |
|---|---|
| 高スループット | Test conditions, 資格の種類, and operating video |
| Ticketing compatibility | Interface documents and integration test |
| Outdoor suitability | 料, sealing design, and test evidence |
| Safe passage | Sensor layout, obstacle tests, and emergency logic |
| Easy maintenance | Service drawings, spare-parts list, and fault codes |
| カスタムデザイン | Approved drawings and revised test plan |
Also review drawing approval, inspection, 包装, commissioning support, 予備部品, and warranty. Useful supporting information may be found in the supplier’s purchasing process, support videos, そして warranty policy.
Before shipment, test valid and invalid credentials, duplicate tickets, accepted scans without passage, wrong-direction movement, network interruption, マニュアルリリース, and emergency input. The turnstile supplier, ticketing provider, integrator, and park should document their responsibilities before testing begins.
The stronger supplier is usually the one that clearly states limitations, responsibilities, and test conditions rather than promising that every product fits every project.
Prepare a Complete Turnstile RFQ
A complete RFQ helps the supplier recommend the correct lane configuration and provide a more reliable quotation.
Include:
- Project country and park type
- New construction or renovation
- Site plan, 寸法, and lane quantity
- Daily and peak visitor volume
- Visitor groups and credential types
- Ticketing software and interface documents
- Standard and accessible passage widths
- 屋内, 有蓋, or outdoor conditions
- 材料, フィニッシュ, 色, そしてブランディング
- 力, ネットワーク, and cabling conditions
- Emergency and testing requirements
- 取り付け, 予備部品, and delivery schedule
Relevant scenic spot turnstile projects may help buyers compare entrance layouts. For evaluation, send the entrance drawing, visitor-flow estimate, credential format, site conditions, and schedule through the contact page.
結論
The right amusement park turnstile supplier should improve the complete entrance operation, not simply deliver gate hardware. Buyers should evaluate peak visitor flow, ticketing integration, アクセス可能な通路, 屋外耐久性, 緊急時の行動, system testing, 予備部品, and long-term support.
A supplier that asks detailed questions before recommending a product is more likely to deliver a stable entrance system than one that immediately provides a catalog model and price.
よくある質問
What Is the Best Turnstile for an Amusement Park Main Entrance?
Wide swing barriers or speed gates often suit main entrances, but the final choice depends on visitor flow, ticketing speed, 車線幅, and supervision. Staff and perimeter zones may need different gate types.
Can a Turnstile Connect to an Existing Ticketing System?
はい, when the reader, コントローラ, software interface, and validation rules are compatible. Test the complete configuration before shipment instead of relying on a general compatibility claim.
How Many Turnstile Lanes Does an Amusement Park Need?
Calculate lane quantity from peak arrivals, acceptable queue time, actual scan speed, visitor mix, and failed-ticket rates. Do not use catalog maximum throughput as the only planning figure.
What Should Be Checked for an Outdoor Turnstile?
Check the cabinet, リーダー, controller compartment, cable entries, 排水, corrosion protection, and operating temperature. Confirm which components have verified IP protection and under what conditions.
What Information Is Needed for an Accurate Quotation?
Provide the entrance layout, 車線数, 来場者の流れ, ticket format, software interface, 通路幅, site conditions, testing requirements, installation scope, and schedule.
