アクセス制御スイングターンスタイル(登攀防止設計)
2026-07-17
Access control swing turnstiles with anti-climb design is created for the entrance requiring a larger, more comfortable entry with little loss of physical security. Typically applied in factories, 学校, 倉庫, 住宅複合施設, 研究施設, transport areas and controlled offices.
It's a product with a meaning that is hard to miss. But a tall panel will not be an effective deterrent to casual climbers and tallness does not constitute a secure entry point. There must be a coordination with the reader, コントローラ, 通路センサー, バリア, the floor anchors, emergency logic and security response.
This guide offers the buyers and system integrators some information on what they should complete before purchasing, configuring and testing an Anti-climb swing turnstile.
Start by addressing the actual security challenge
Prior to installing a gate, question them about why unauthorized access might most likely occur.
An invalid credential might be presented by one of them. One can follow closely an approved user. They could be able to get into the cabinet from another person's side, under the cabinet, over the cabinet or through the unfinished space next to the cabinet.
There are various controls for these actions. Access Software does permission checking. Passage sensors record the passage of movement in the lane. Who can climb up on the extended panel, who can walk around the walls and/or the railings or the fixed partitioning.
| セキュリティリスク | Primary Control | 支援措置 |
|---|---|---|
| 無効な資格情報 | Access verification | Permission rules |
| テールゲーティング | Infrared sensors | Alarm response |
| Climbing | Extended barrier | Remove footholds |
| サイドバイパス | Fixed boundary | Close side gaps |
| Forced entry | Reinforced mechanism | CCTV or guard response |

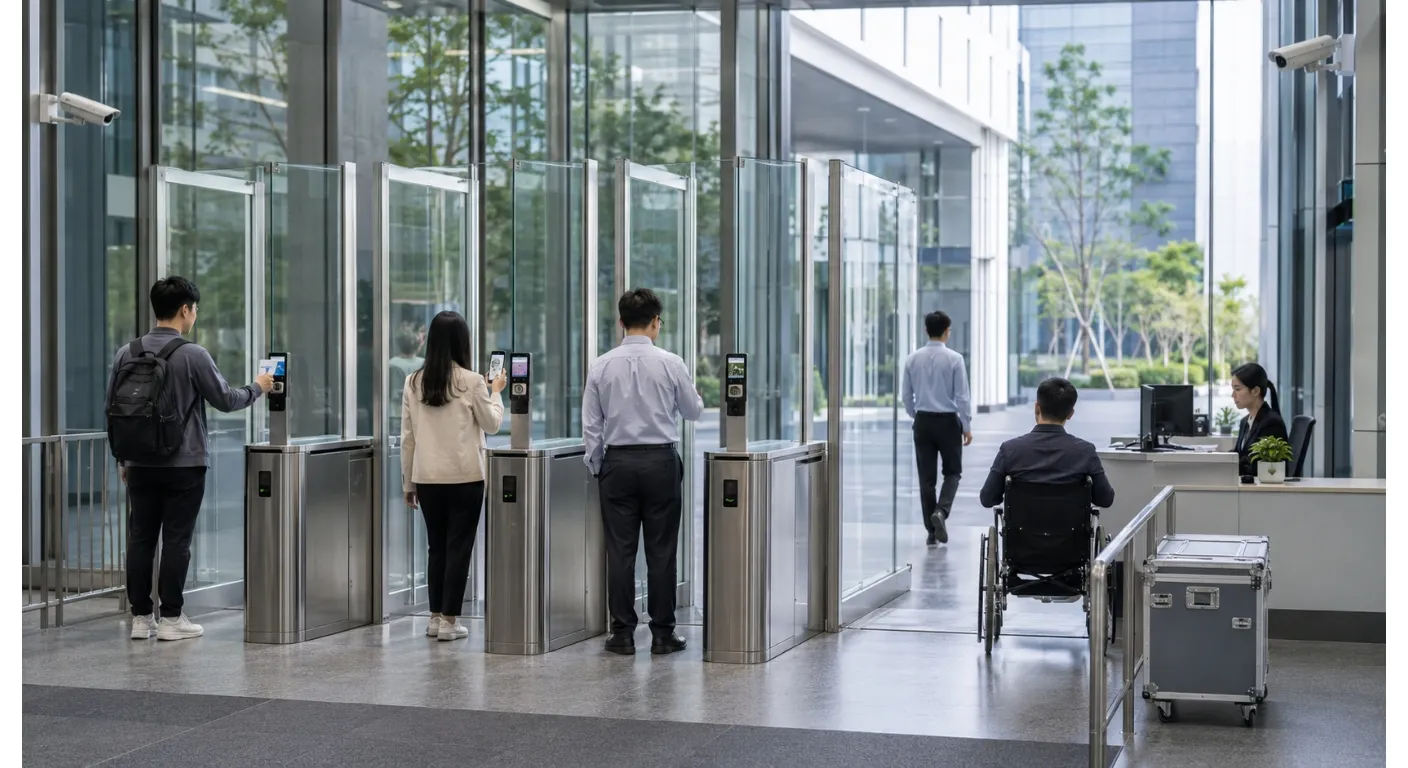

An anti-climb swing gate should therefore not be the sole measure of security, but rather just another layer of security. While Ironman's アンチクライムスイングバリアゲート is made of reinforced panels and can be motorized, access control can also be compatible, and it has passage detection, the final degree of protection will come down to the project layout and operating rules.
You will need to decide if a swing gate is a suitable gate at the entrance
If the entrance requires more space than a tripod or a narrow flap (改札 口) gate can accommodate, then there is a swing turnstile that can be used. It can be used by employees carrying equipment, for people needing a wider lane such as visitors with luggage, maintenance carts and more.
When using an anti-climb swing gate instead of a standard size gate that swings on its hinges from the top of the gateframe, it creates a greater barrier to jumping. In a canteen with a staffed entrance it's also usually less cumbersome than a full height turnstile and will blend more seamlessly into a contemporary setting.
The midway position stands this baby out, but what it lacks, it has in plenty as well. It should not be referred to as a “full height perimeter barrier. If the threat level is high or the entrance is not regularly monitored then a full height turnstile, フェンシング, guard response or cctv may still be required.
See the entire entry plan as well as the full set of product dimensions, not just choose an anti-climbing swing turnstile based on dimensions.
See outside the lines of the actual panel
Removable convenient footholds and handholds will be eliminated in the good anti-climb design, and moving panel will remain stable. All the above – the kind of material used for the panels, edges treated, frame size, motor capacity, transmission configuration, cabinet rigidity, ground anchors, 等. should be reviewed by the manufacturer.
It isn't just about what's in the frames; it is just as essential what is not. Measure the distance below the panel, between the panel and cabinet, between lanes and between the last cabinet and the closest wall/rail. Correct – if someone can squeeze around the tall barrier or climb up onto some furniture nearby, you will lose the value of the tall barrier.
Please note that "Custom" changes require engineering review as well. A general increase in width of the lane or increase in height of glass panel places a greater load on the mechanism which can have an impact in the following areas: 開口速度, wind resistance, 内閣の安定性, and testing. The dimensions for the finalized object should be shown on an approved drawing, and should not be included in an email conversation.
Nearly all students are able to receive a qualification by sitting a test
The access control platform is to respond to a digital query: "Is he or she allowed to enter here, is he or she allowed today?"
The turnstile has to come back with an answer to a physical enquiry: have one authorised person passed?

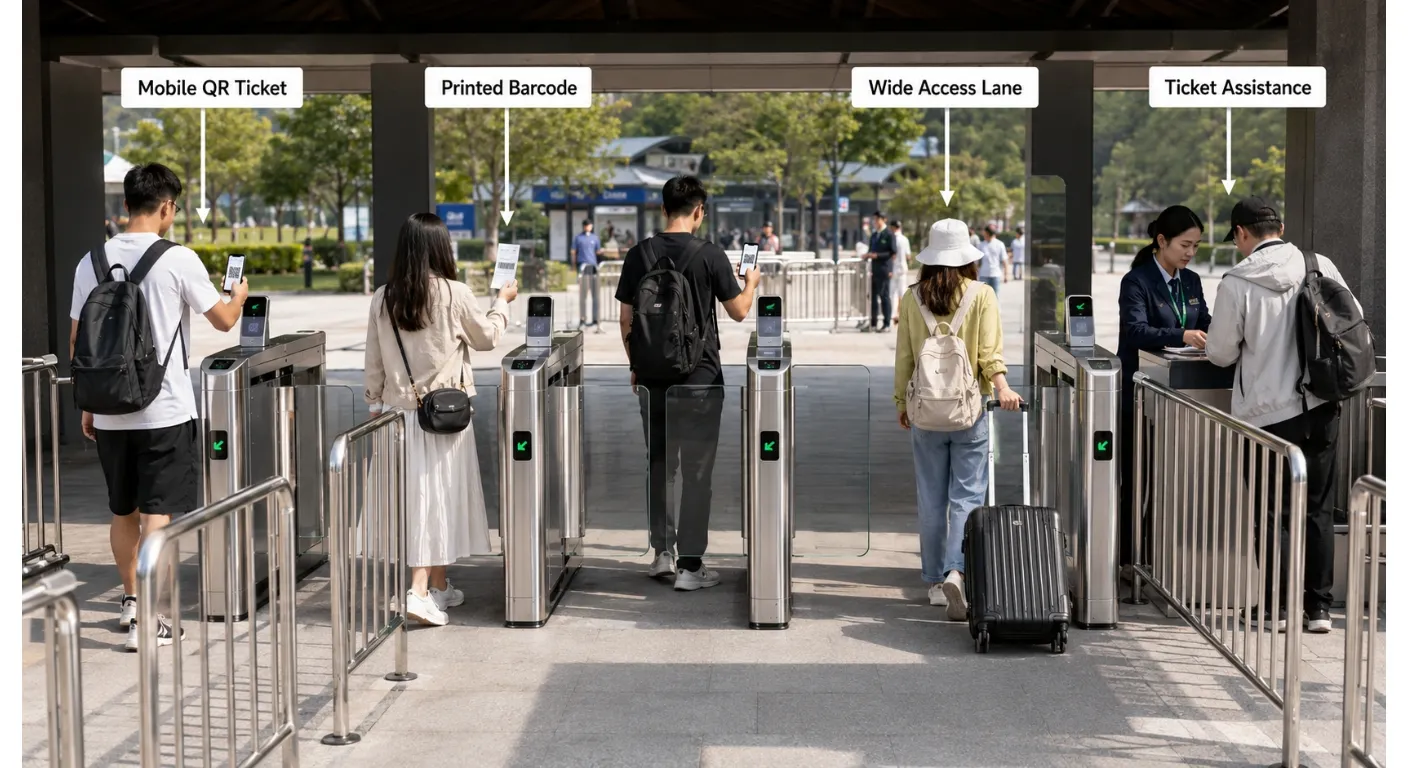

RFIDカード, モバイル認証情報, QRコード, fingerprint terminal, facial recognition and 2-factor authentication can be used in a project. In both cases the reader, the controller and the gate logic need to be specified prior to the start of production.
Verify the reader model, マウンティング, signal for opening, 通信インターフェース, entry/exit directions, イベント記録, and behaviours of the offline reader, およびアラーム出力. But possible configurations are offered by Ironmans アクセス制御機器 and resources for system-integration, but the approved reader, コントローラ, software and gate should be tested together.
The term supports access control is to wide to make it a purchase order. The project team should have all the knowledge necessary for opening the gate, what to do if the communication breaks down and who risks what for each of the interfaces.
The two functions are separated from each other: Anti-climb and Anti-tailgating.
The higher the panel the more you will have to go over the barrier. It can't tell whether or not two individuals have signed into it after having signed into another site with a different authorization.
Anti-Tailgating relies of the following three factors: number and location of infrared sensors, passage algorithm, and detection response upon detection of abnormal passage. The lane may have to indicate close following, two-person crossing, going the wrong way or when someone runs into the gate without asking, someone stopping in the middle of the gate, and incomplete foot crossing.
Request a drawing of where the sensor will be placed, and obtain a detailed explanation of the operating steps. What is the time at which the panel starts its meeting? The user has a certain time interval to go by. How does it shut? Will an abnormal event sound an alarm, trigger a relay output, trigger a CCTV event or alert the security desk?
The above settings need to be the same as the users. It is incorrect to assume a slow opening for a school entrance, a factory gate or corporate make entry equal to a slow opening for another portion of the institution, such as a school opening or a corporate entry.

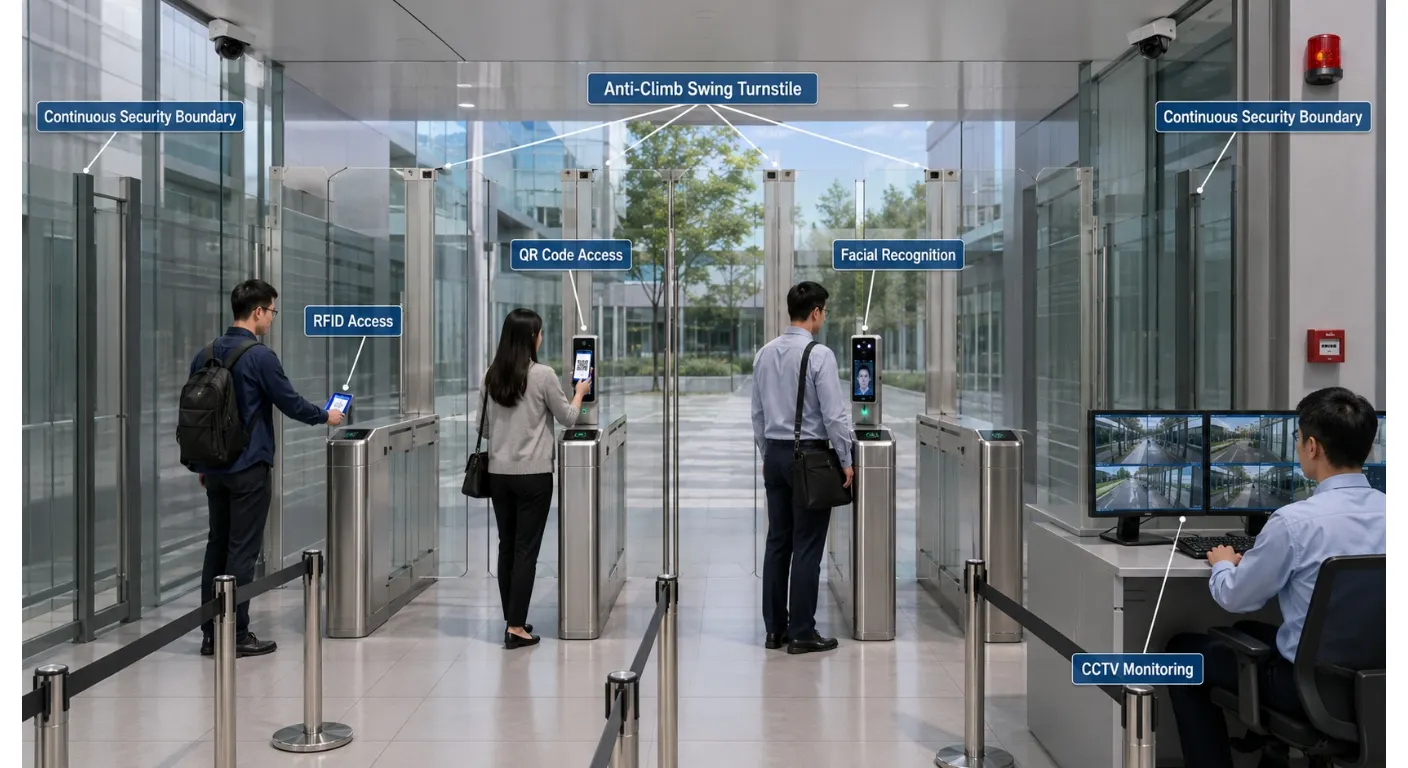

Identify and ensure a continual security boundary
Safety often doesn't happens at the turnstile – it happens around the turnstile.
Users should be prevented from walking around the last cabinet by having the gate be connected to walls, fixed glass, guard rails or fencing. It is common practice that people are directed towards readers and away from the barriers by queues and barriers, while avoiding the creation of steps for people to climb out of. Avoid placing benches/planters, storage boxes or temporary furniture on the expanded panel.
Position of the reader is important, も. Users should be able to log in and have access to the controlled area, as well as enough space to get out of the way if they are denied access by the next user.
The programme of access for the building should be depicted in the entrance plan (including camera coverage and visibility of the security desk, 訪問者支援, メンテナンスアクセス, cable routes and emergency movement options). A pre-saving analysis of these details will be simpler, than moving the readers into position and adding other railings post commission.
Keep all three elements of Balance, Accessibility and Security in mind!
The wider the lane the more usable it is; the more significant this difference, the less it fits the physical design. The manufacturer may require their panels to be wider, motors to be more powerful, set the sensors to capture a wider area, set the opening time shorter and harder to close the cabinets, or have the cabinet anchored in a different location.
Don't presume a turnstile lane is wide enough to be an accessible route. Per the U.S. アクセスボード, turnstiles should not be included in any accessible route, and an adjacent accessible gate/door might be needed where ADA Standards apply. The entire path and operation should be evaluated for the particular project.
It doesn't mean that a swing gate can't be helpful in regards to passing through the gate for wide passage. It requires planning access to be incorporated into the full entrance as opposed to an access from one of the advertised entrance dimensions.
Installing outdoor protection takes multiple components
If you are going to have an outdoor/common entrance or partially covered, think about direction of rain run-off, 埃, 湿度, 排水, 日光, 温度, salt exposure, and wind loading of the longer panel.
Inquire about the protection methods used for all cabinet items, external reader, コントローラー区画, cable glands, モーターエリア, fasteners and emergency controls. You can't just assume that having a weatherproof cabinet means that all the devices inside are secure.
The protection that is afforded by the electrical enclosures against objects and water can be classified from IEC 60529. If an IP rating is necessary, verify the enclosure tested, if you have any openings, 展示, cable openings or custom changes, verify if this fluctuates the IP rating.
There needs to be a viable maintenance strategy for outdoor projects, も. This can lead to decreased reliability over time due to blocked drainage, unscrewed anchors, damaged reader windows or frosted barrier panels.
Determine what to do in the event of an emergency or failure
A safe entrance will continue to function safely in the absence of normal functioning.
Instructions of action for power failure, ネットワークの故障, controller failure, fume alarm, emergency-button, sensor failure, motor obstruction and manual security release should be decided in the project team.
Many answers are possible for each location. A few entrances require the panels to open by themselves. Some others might be unlocked for specific hand maneuvering needs or under the staff supervision.
The manufacturer needs to provide a description of the outputs and mechanical response of the signal. Final arrangement agreed to by architect, 消防コンサルタント, インテグレーター, operator and local authority.
Ensure that the Approved Configuration is tested prior to shipment.
The agreed panel height and lane width, 読者, controller and software signal (and sensor) settings should be used in the factory test wherever possible.
The test should include testing of credentials (both valid and invalid), one-person, テールゲート, wrong direction, 障害物, 不完全な通過, controlled pushing, アラーム出力, 電力回復, alarm failure (ネットワーク), power up, 非常口, remote release, and recording of the events.
Safe fixtures, measuring devices, soft test objects and controlled procedures should be utilized as the basis for anti-climb checks. The following should not be used as a demonstration:磅 employees are not to be asked to stand on either side of an operating gate.
| Test Item | Expected Result |
|---|---|
| Valid credential | Gate opens once |
| テールゲーティングの試み | Alarm activated |
| 障害物検知 | Panel stops safely |
| 強制押し | Alarm or resistance triggered |
| Network failure | Approved fallback applied |
| Emergency input | Gate follows approved logic |
Ask for the following documents: ビデオ(s); inspection sheet(s); 承認図面; 配線図(s); software version(s); serial number(s); packing photos; and a list of spare parts. If the panel, リーダー, lane width or control logic is different from that in a standard showroom model, testing the standard showroom is not sufficient to determine the proper operation of the delivered gate.
Create a well-defined RFQ.Draft a clear RFQ.
The drawing of the entrance, the project application, the main risks of security, the number of lanes, the height of the panels, the width of the passage, the adjoining walls or railings, the groups of users, peak flow, access method, ソフトウェアインターフェース, alarm needs, the environment, the behaviour in case of emergency, the scope of installation, 試験要件, the supply of spare items and the delivery time are useful elements in an RFQ.
Please provide the following information on the アイアンマン・コンタクト・アスページ, so we can review the project.
Making clear information means it is simpler to find routes around, restrictions in the structure, integration conflicts, emergency issues, prior to production start.
結論
Anti-climb design access control swing turnstiles can offer a valuable compromise between easy flow and enhanced physical security. It is the synergy between the panel, センサー, コントローラ, boundary surrounding the panel, the foundation and their operating procedures, that make all the difference.
The words “anti-climb”—no matter how many are used—aren't ever of any particular value to a reliable manufacturer. It will be reviewed to improve the overall entrance, describe design restrictions, record all interfaces, try out the final configuration prior to delivery.
よくある質問
An Anti-Climb Swing Turnstile does prevent tailgating?
Not by itself. Whether through infrared sensors, passage logic, alarms and an effective security response, tailgating control relies on four key elements.
As Safe as a Full-Height Turnstile?
Usually not. More deterrent than a standard swing gate and again a full height system would create a more solid physical barrier.
Does it have to use RFID, QR codes or Biometrics?
はい, under the condition that all four the reader, コントローラ, software interface and opening logic are compatible. Work out an acceptable set of devices prior to the provisioning of the shipment.
Is it suitable to place outside?
はい, in the case an environment that is suitable for the cabinet, リーダー, 電子工学, パネル, アンカー, drainage and motor. Specify the protection of each component–not a blanket claim to be outside in the open.
The questions that might be included in the RFQ might be different.
The entrance plan, security goal, パネルの高さ, 車線幅, access method, flow of the user, 環境, 緊急ロジック, scope of test and installation responsibility are provided.
